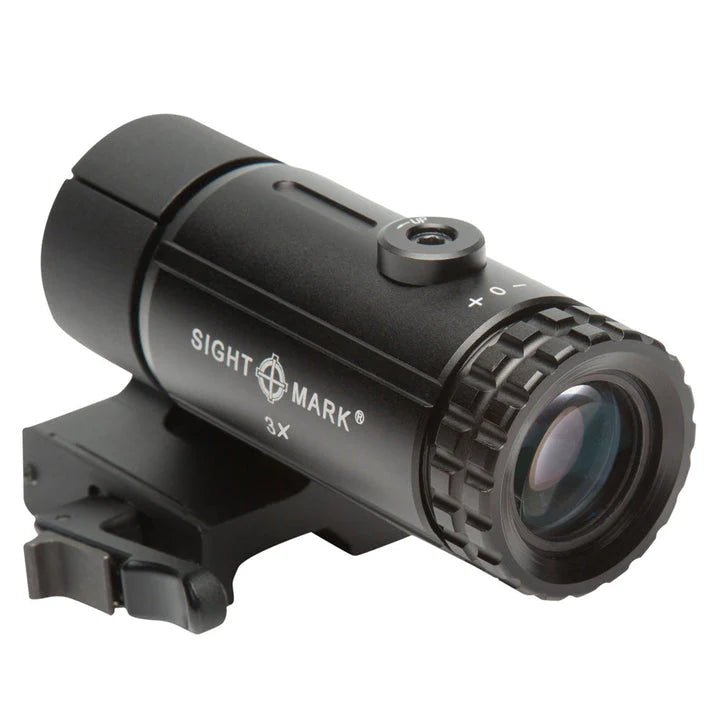

Sightmark T-3 Magnifier with LQD Flip to Side Mount

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminium and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the centre of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

Included in Package

• Flip to side LQD mount
• Adjustment tools
• Manual

Product Downloads

• Product Manual - English
• Product Specifications

Features

• Locking, quick detach mount for quick and easy removal
• Flip-to-side mount provides rapid transition between optical systems
• Fully multi-coated, scratch resistant
• External windage/elevation adjustment for reticle alignment
• Increases magnification of accompanying sights for greater engagement range
• EOTech® and Aim point® compatible
• Aluminium construction

  Magnification	3x
  Diameter, Objective Lens	23 mm
  Diameter, Eyepiece	1.26/32 in/mm
  Diameter, Exit Pupil	7.6 mm
  Eye relief (in/mm)	2.25/57 in/mm
  Field of view, m@100m	14.43
  Field of view, ft@100yd	43.3
  Diopter Adjustment	+3 to -3
  Diameter, Tube	30 mm
  Maximum Recoil	.308 Caliber
  Shockproof	Yes
  Fog Proof	No
  IP Rating (waterproof)	IP55 - water resistant
  Finish/Color	Matte black
  Body Material	Aluminum
  Lens Coating	Full Multi-coated
  Mount Type	Picatinny
  Operating temperature, F/C	-22 to 160 / -30 to 71 F/C
  Length (in/mm)	4 / 103 in/mm
  Width (in/mm)	2.6 / 66.2 in/mm
  Height (in/mm)	1.67 / 42.5 in/mm
  Weight, oz	10.6 oz.
