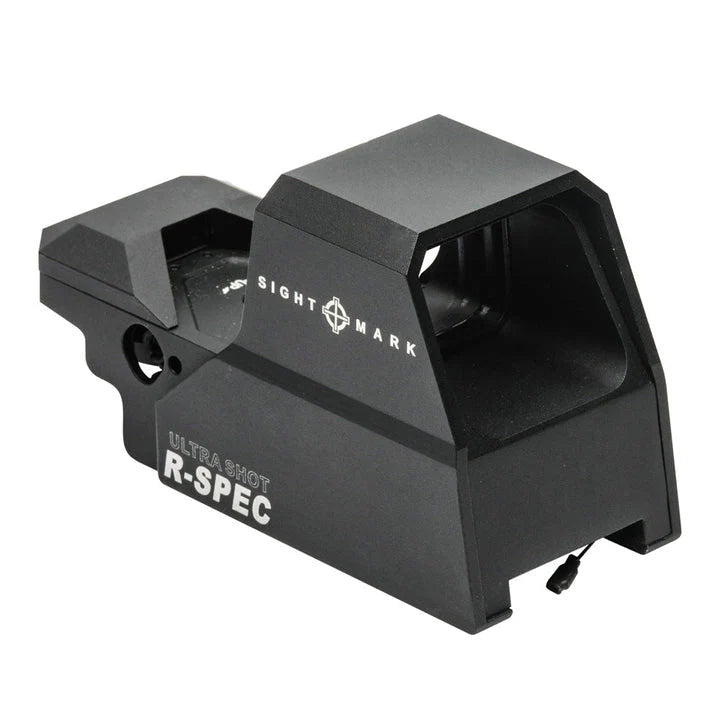

Sightmark Ultra Shot R-Spec Reflex Sight

The Sight mark Ultra Shot R-Spec Reflex Sight turns up the heat on your range time with ultra-fast target acquisition and seriously long battery life, from 200 to 2,000 hours on a single CR123A battery. The Ultra Shot R-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective silver coating, 4 illuminated red/green reticle options with 10 brightness settings, parallax correction (beyond 25 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability. Built tough, the Ultra Shot R-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminium body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly and keep you there with an Interlock internal locking adjustment system, for precise, repeatable shooting from any range your comfortable shooting at 1x magnification. The Ultra Shot R-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sight mark's lifetime warranty.  Includes adjustment tools, CR123A battery, operation manual and neoprene cover.

US Pat. D872219       US Pat. D872219S1

Included in Package

• Neoprene cover
• Adjustment tools
• Battery
• Manual

  Batteries Used

  • Type: CR123A
  • Quantity: 1

  Product Downloads

  • Product Manual
  • Product Specifications

  Features

  • Rugged lightweight aluminium alloy housing
  • Protective aluminium shield
  • Quick detach picatinny mount
  • Wide lens provides quick target acquisition
  • Slotted windage and elevation adjustments
  • Red and green reticle illumination
  • Low battery indication
  • Digital switch controls
  • 10 reticle brightness levels
  • 1 hour auto shutoff
  • Multiple reticle options
  • Scratch resistant lens coating
  • Interlock internal locking adjustment system

  Reticle, Type	4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (sub tensions total 50 MOA)
  Reticle, Color	Red and Green
  Magnification	1
  Reticle Brightness Setting	Off, 1-10
  Eye relief (in/mm)	Unlimited in/mm
  Objective overall dimension (mm)	33x24 mm
  Elevation Adjustment	120 MOA
  Windage Adjustment	120 MOA
  Adjustment Value	1 MOA
  Parallax Setting	25 / 23 yd/m
  Finish/Colour	Matte Black
  Body Material	Aluminium 6061-T6
  Maximum Recoil	.50 BMG Max calibre
  Waterproof IP Standard	IP55 - water resistant
  Shockproof	Yes, 8ft / 2.4m
  Fog Proof	No
  Lens Coating	AR Silver
  Nitrogen Filled	No
  Battery Life	200 - 2,000 Hours
  Mount Type	Picatinny
  Battery Type	CR123A
  Battery Voltage, V	3V
  Width	1.96 / 50 in / mm
  Length	Height	2.28 / 58 in / mm
  	Weight, oz	10.7 oz
  	Operating temperature, F/C	-22 to 160 / -30 to 71 F/C
